Wide range of components made of special tubing
Components based on round tubing
A wide range of stainless steel components can be produced on the basis of longitudinally welded stainless steel tubes. These include:
- Exhaust systems
- Outer shells for catalytic converters and diesel particulate filters
- Filter housings
- Fuel rails
- Chassis structural components
- Safety components (e.g. for airbags)
- Tank filler necks
- Heating distributors
- Sanitary industry products
- Heat exchangers
Components made from thin-walled tubes
fischer thin-walled tubes with wall thicknesses from 0.1 mm can be used to produce extremely material and weight-saving components.
They are used in a wide variety of industries and applications.
- Household appliances
- Vacuum cleaner tubes
- Sea water desalination plants
- Water treatment plants
- Heat exchangers
- Process industry
- Pump industry
- Sanitary industry
- Outer shells for emission control systems
Components from and applications of calibrated square, rectangular and profile tubes
- Filter housings
- Exhaust gas recirculation systems
- Chassis structural components
- Shopfitting
- Heat exchanger shells
Metal bellows
Technical specifications:
- Tube exit diameter 12 to 45 mm
- Wall thickness range from 0.2 to 0.8 mm
- Strain rate up to 45% (depending on the material used)
Applications:
- Decoupling elements
- Fuel lines
- Tank filling
- Tank ventilation
Components with multiple wall thicknesses
- Air gap insulated tube
- Curved air gap insulated tube
- Joined double wall tube
- Pressed double wall tube
Triple tube connected by end forming.
Designs:
- Made of three single tubes
- Made of a single tube and a double wall tube
- Made from any combination
Applications
- Exhaust systems
- Heat insulation
- Soundproofing
- Safety components (double-walled version)
- Reinforcement with coupled components
Components with structured surfaces
- Standard structures: 7GM, 5WL and 6WL
- Other structures on request
- Dimensions, materials and machining options by individual agreement
Perforated components
- Processing of perforated fischer stainless steel tubing
- Individual hole pattern
Applications
- Filter technology
- Soundproofing

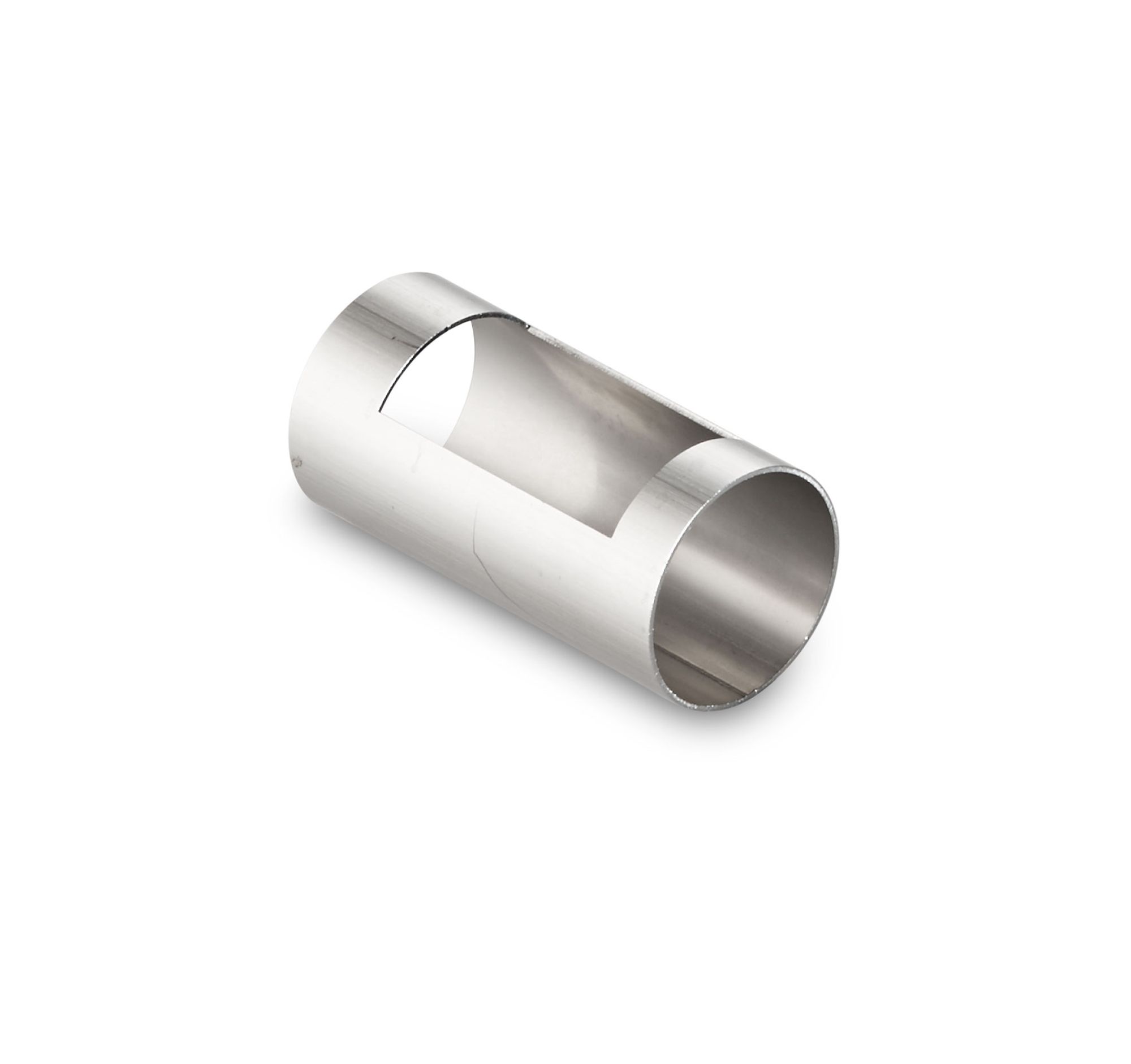

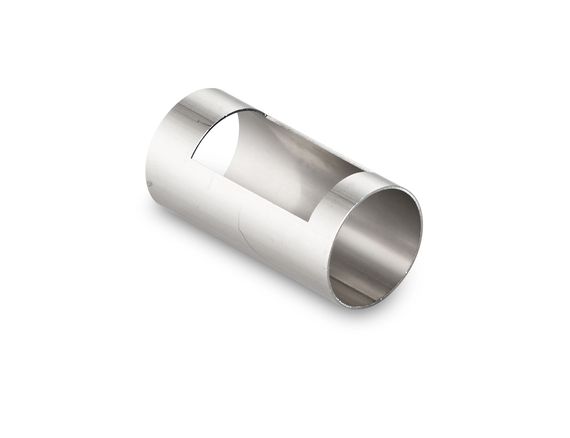

Components based on round tubes

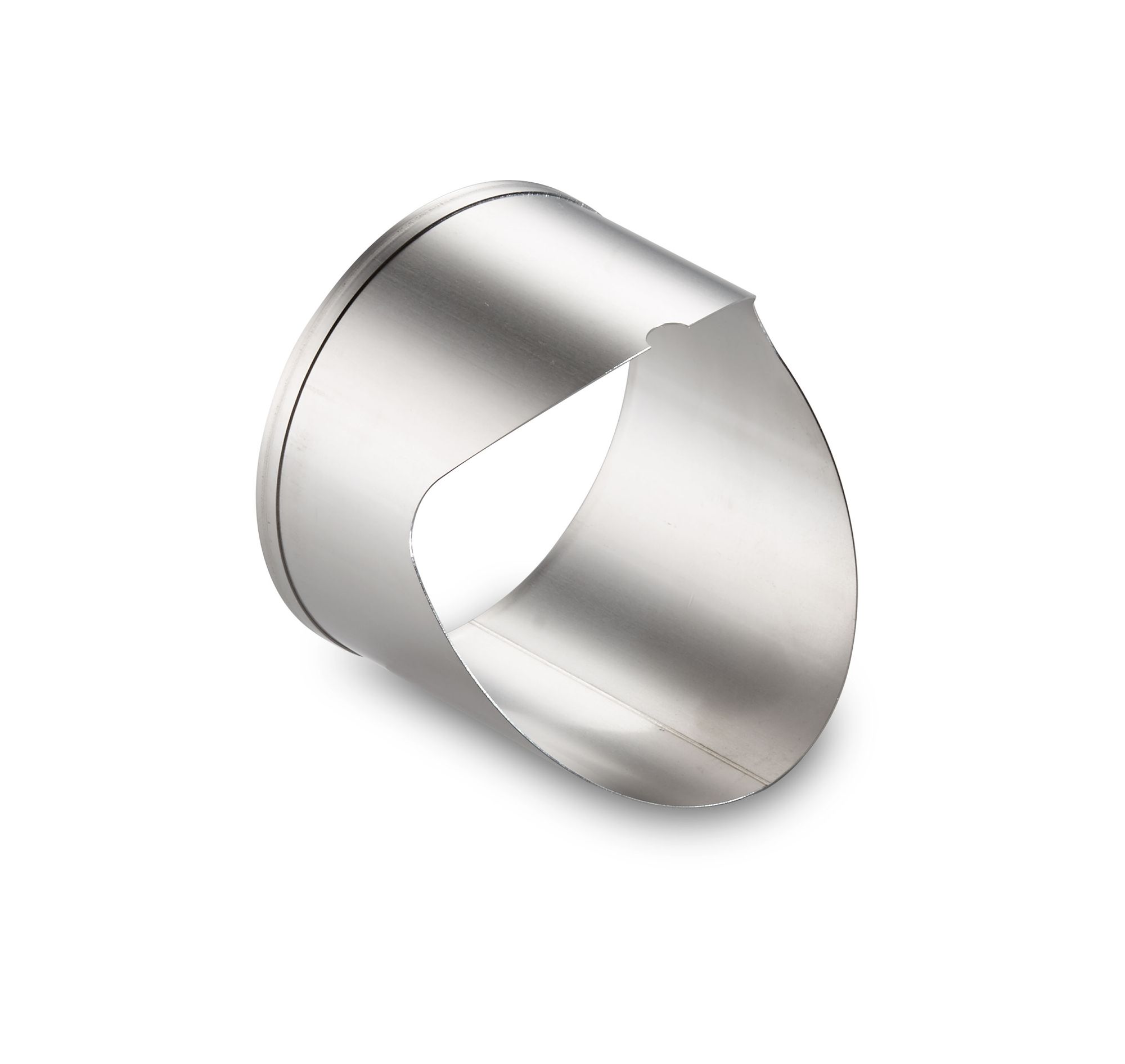

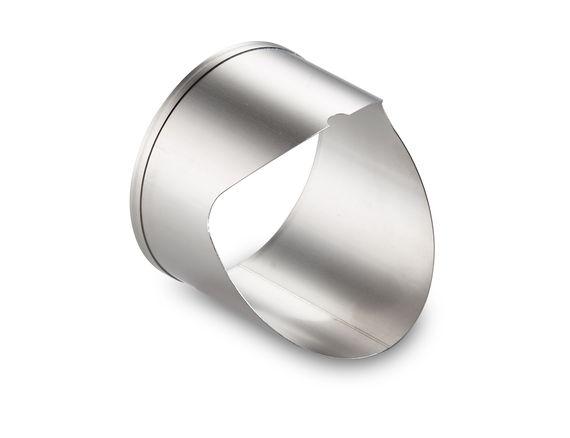

Components made of thin-walled tubes

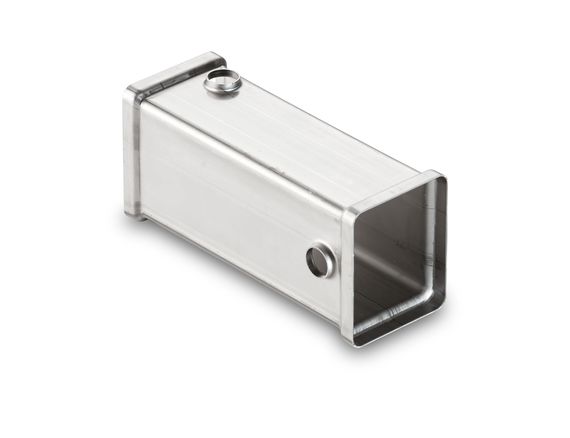

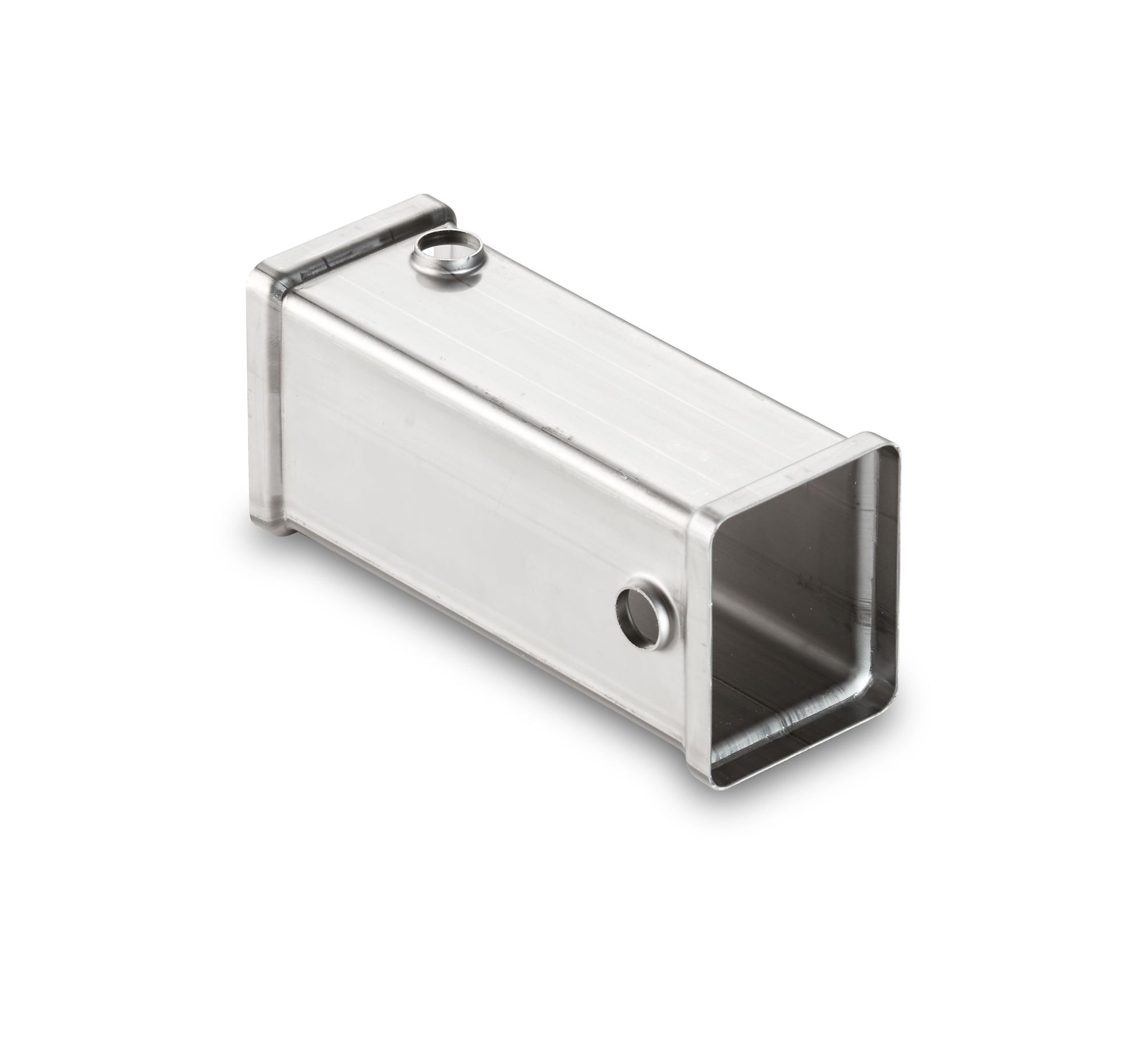

Components made of calibrated square, rectangular and profile tubes

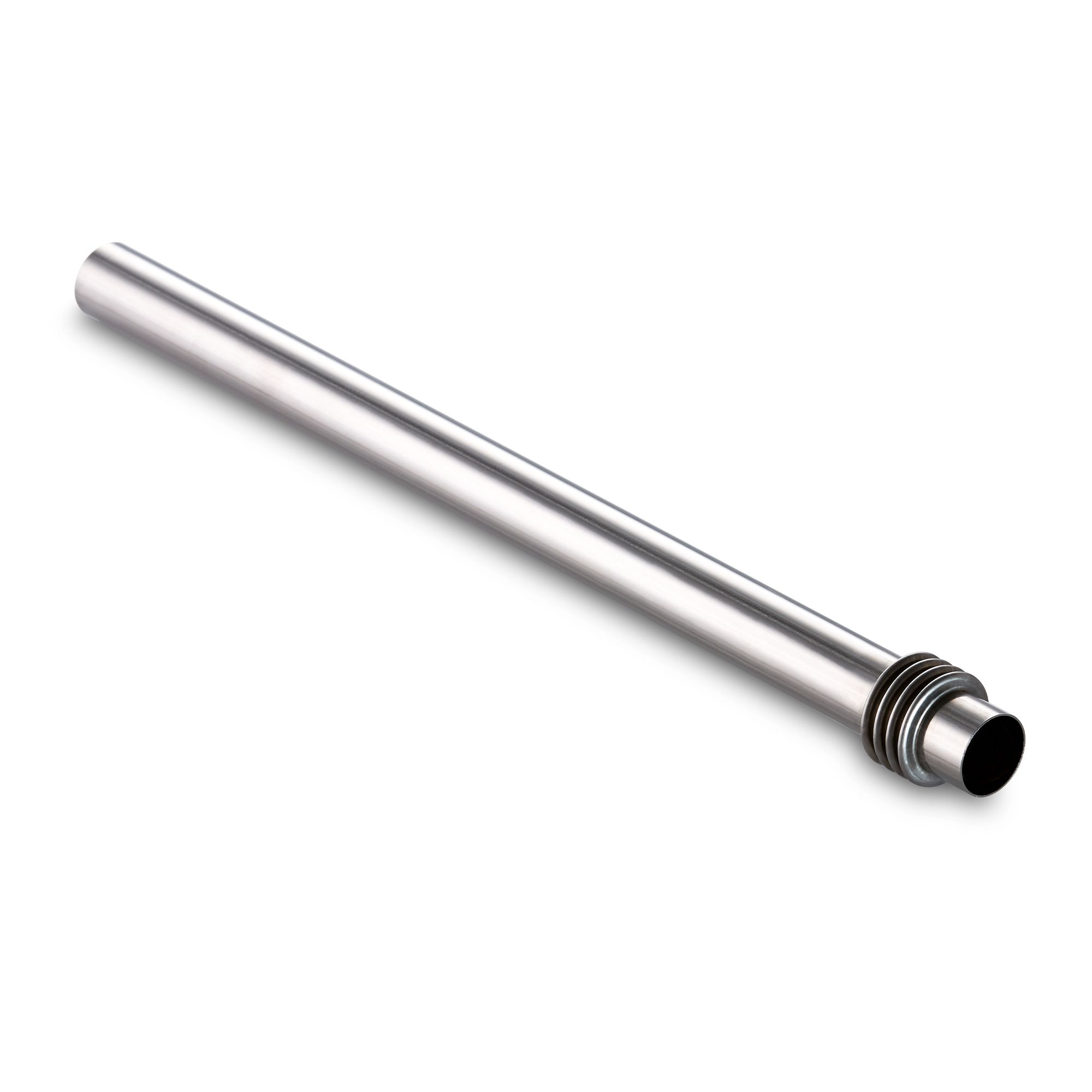

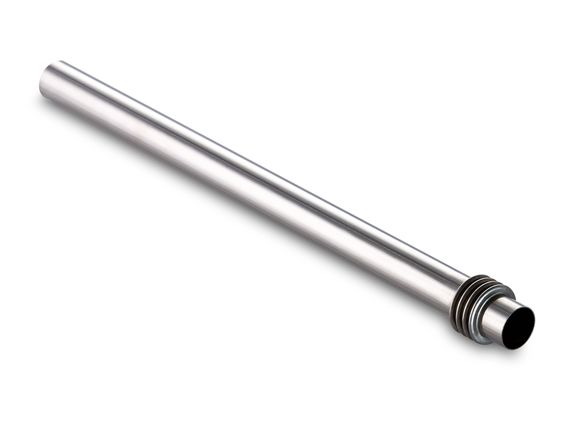

Metal bellows

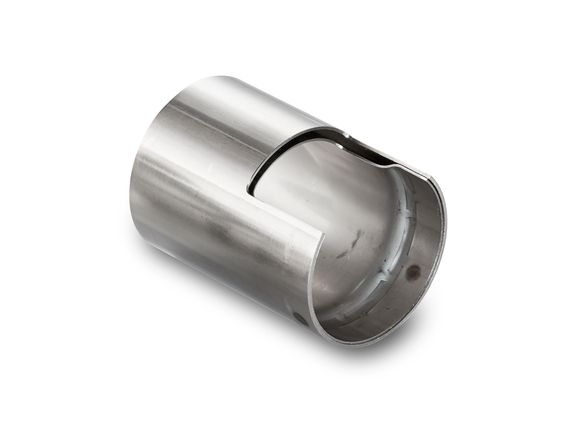

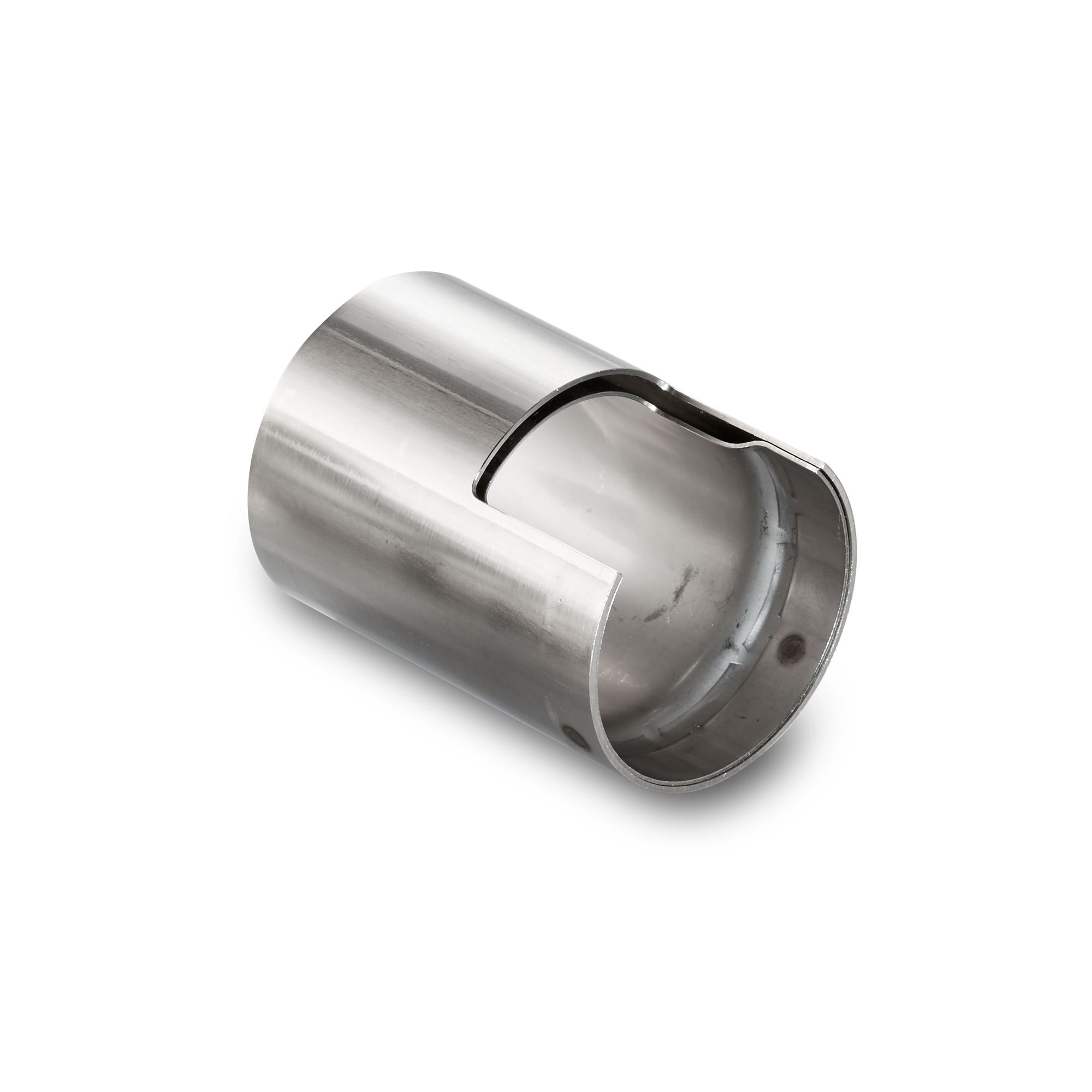

Components with multiple wall thicknesses
Tube with triple wall

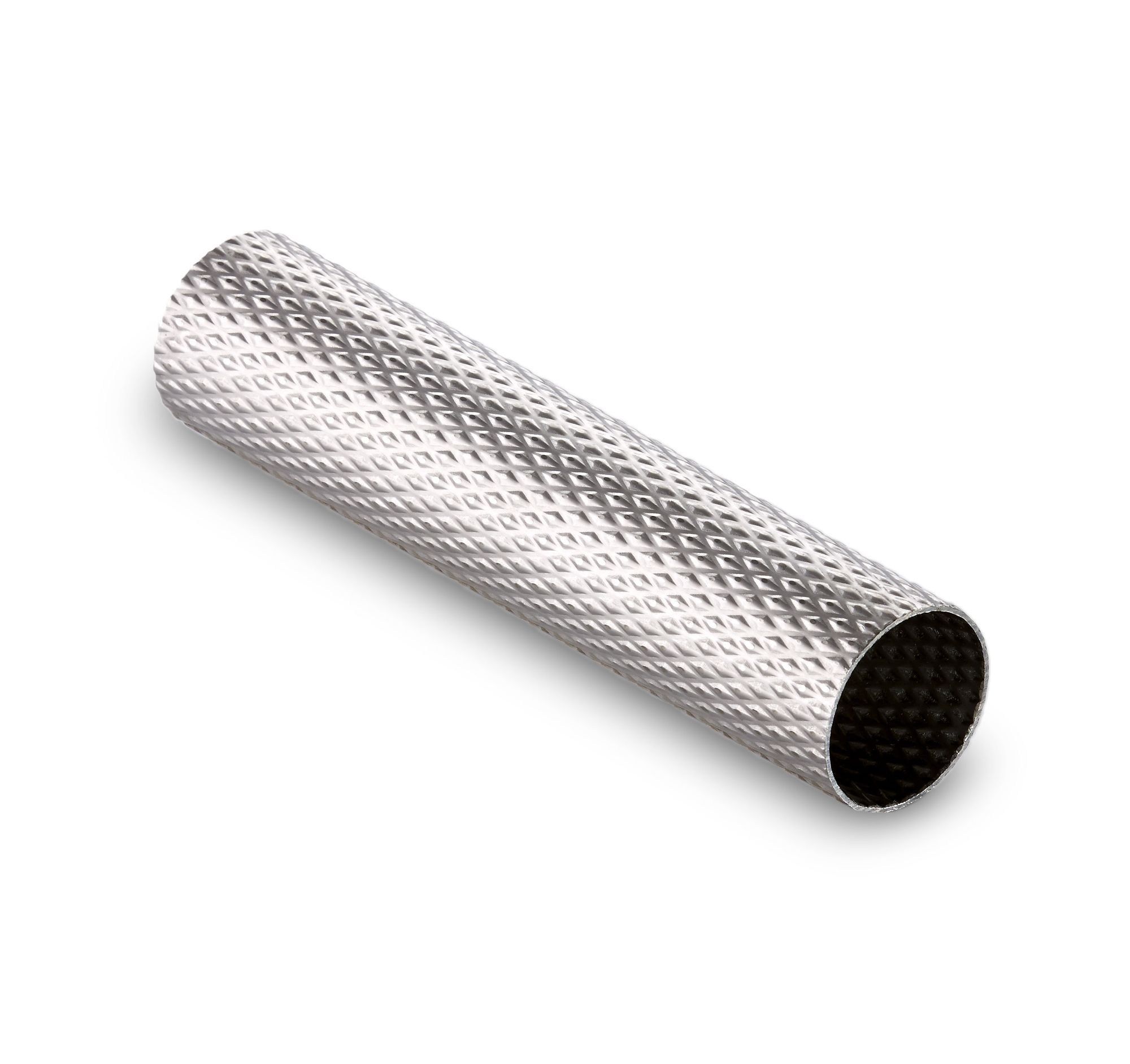

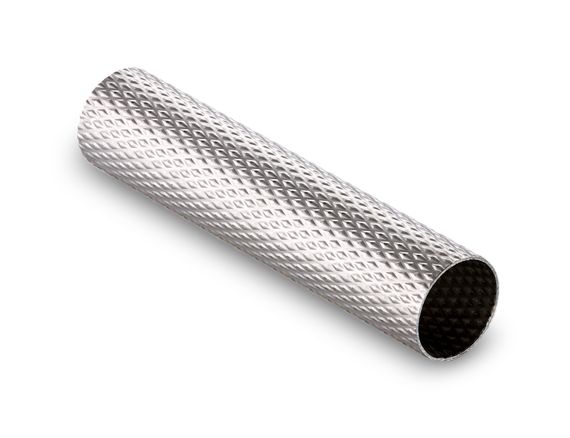

Components with structured surfaces

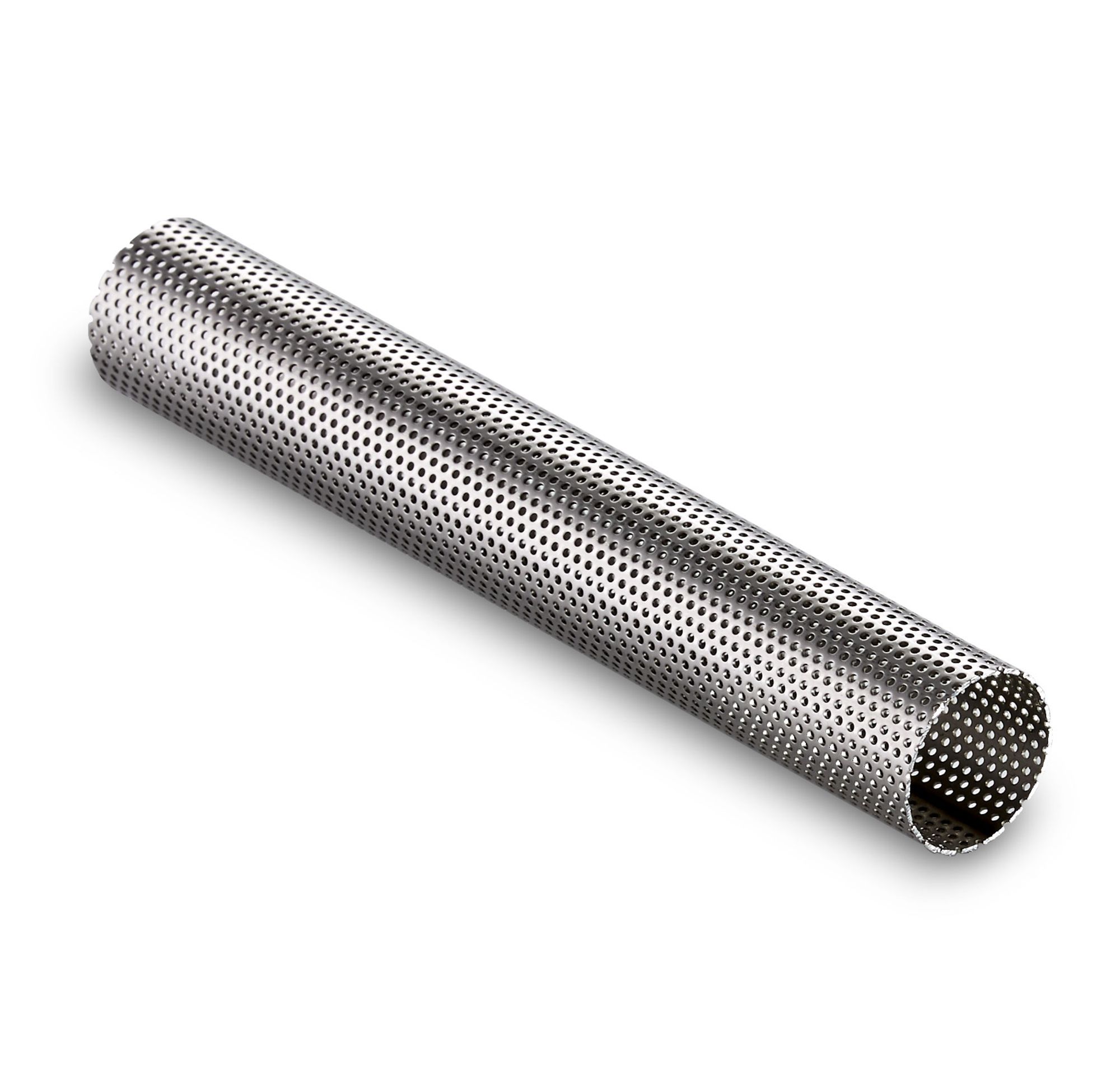

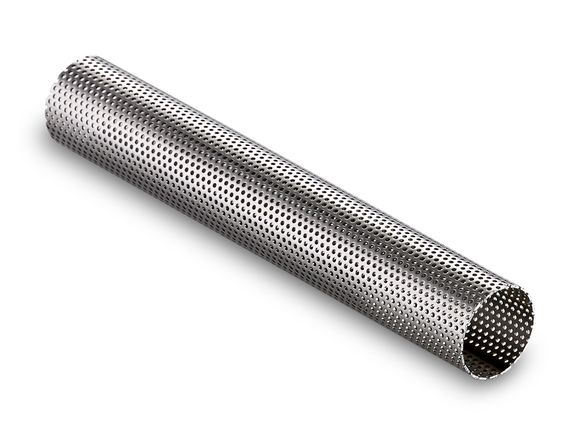

Perforated components
Hydroformed components
- Widest variety of designs
- Space saving shapes
- Special design
- Stability in lightweight construction
- Functionally optimized components, e.g. for better heat exchange
- Components with complex flow geometries
- Wide variety of materials: stainless steel, steel, aluminum, non-ferrous metals (e.g. brass, copper), nickel-base alloys
Hydroformed component
Exhaust funnel
Hydroformed component
Manifold
Manifold
Air gap insulated manifold
Hydroformed Y-tube
